Dock Panel in XAML

Posted By: Vivek Patel     Category: WPF     Views: 11024

This article will explain Dock Panel Layout in XAML. A very simple tutorial to understand Dock Panel Layout in XAML.

Understanding Dock Panel Layout

  • Dock Panel Layout allows elements to be docked to the edges of the panel’s container, similar to windows forms docking.

Example of Dock Panel Layout

<DockPanel>
    <Label Content="Dock Panel Layout Demo"
    FontSize="15" FontWeight="Bold" Background="LightBlue"
    Foreground="Blue" DockPanel.Dock="Top"/>

    <Label Content="Footer" FontSize="15" FontWeight="Bold"
           Background="LightGray"
           DockPanel.Dock="Bottom" />

    <Label Content="Left Pane" FontSize="15" FontWeight="Bold"
           Width="125" Background="Firebrick"
           DockPanel.Dock="Left"/>

   <Label Content="Content Pane" FontSize="15" FontWeight="Bold"
           Width="255"
           Background="Beige"/>

    <Label Content="Right Pane" FontSize="15" FontWeight="Bold"
           Width="125" Background="Khaki"
           DockPanel.Dock="Right"/>
</DockPanel>

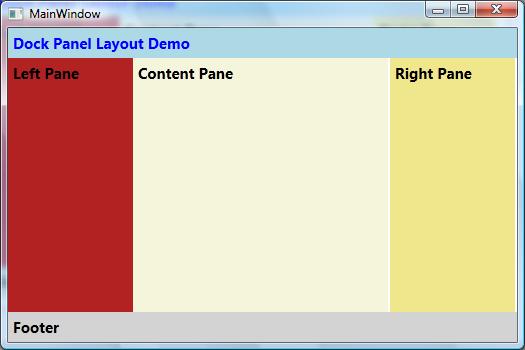

Output
