Code First for Existing Database with POCO class auto generated

Posted By: Vivek Patel     Category: Entity Framework     Views: 21720

In this article i will explains you how to use Entity Framework CodeFirst Approach for Existing database with POCO class generated on the fly (Auto Generated)

Since we want to generate POCO class on the fly we have to download EF4.x POCO Entity Generator for C#

Step 1: Download EF4.x POCO Entity Generator for C# http://visualstudiogallery.msdn.microsoft.com/23df0450-5677-4926-96cc-173d02752313

Step 2: Create Visual Studio Project

Step 3: Choose Internet Application Template

In order to generate POCO class for existing database for EF Code First

Step 4: Right Click Project in Solution Explorer, then Click on Entity Framework and then click on Reverse Engineer Code First

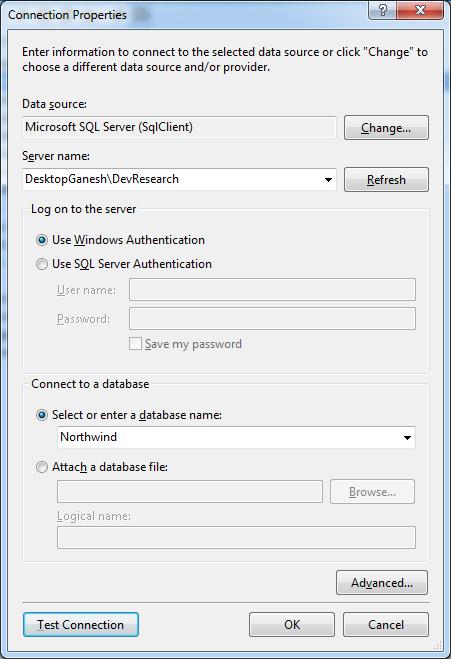

Step 5: Make Connection to your existing database and Test Connection

And this will generate all necessary POCO class for your database. Here is how your Model folder looks after POCO class auto generation completes.

Model Folder

Step 6: Build your Asp.net MVC Project to make sure that everything is working

Lets Displaying Customer Records

Step 7: Right click controller folder and choose Add Controller

Controller Folder

Step 8: Name it as CustomerController and Choose Customer for Model and NorthwindContext for DBContext

Add Controller Dialog Box

Click ok and it will generate CRUD Operations for Customer Class

Step 9: Run the Project and Type following in URL

Asp.net MVC WEbsite

I hope you enjoyed this article. With All new support for Entity Framework now you can very easily use CodeFirst approach for your existing database.
